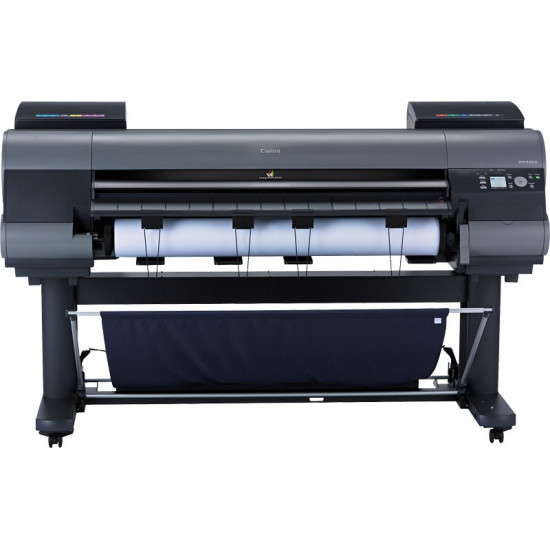

Canon IPF 8300 (Plotter Used)
Μεταχειρισμένο πλόττερ Canon IPF 8300.
Με καινούργιες κεφαλές.
Χρειάζεται αντικατάσταση ο φορέας κεφαλών.
Στην τιμή ΔΕΝ συμπεριλαμβάνονται τα μεταφορικά
και τα έξοδα συσκευασίας.
BASE SPECIFICATIONS
Class 44-inch
Ink Type Pigment ink, 12 colors (LUCIA): BK, MBK, C, M, Y, PC, PM, GY, PGY, R, G, B
Maximum Print Resolution 2,400 x 1,200 dpi
Dimensions, Weight Main unit with Printer Stand and Basket 1,893 (W) x 975 (D) x 1,144 (H) mm;
Weight: approx. 143 kg (including Roll Holder Set; excluding ink and print heads)
Power Supply Input power AC 100 - 240 V （50 - 60 Hz)
Power consumption
Operation: 190 W or less
Standby power consumption 100 V - 120V 5 W or less
(At the low power mode) 220 V - 240 V 6 W or less
Power off (standby) 1 W or less
Operational Environment Temperature: 15 - 30°C, Humidity: 10 - 80 % (Condensation free)
Acoustic Noise Acoustic pressure:
Operation approx. 50 dB (A) or less
Standby: 35 dB (A) or less
Acoustic power (LWAd): Operation 6.8 Bels or less
Operation Panel Display Display Large LCD: 160 x 128 dots, LED x 5, Key x 13
Language on operation panel US-English, Japanese
Displayable Language on LCD US-English, French, German, Italian, Spanish, Chinese, Korean, Russian, Japanese (Kanji)
Hard Disk 2.5 inches, 80 GB
Interface Hi Speed USB, Type: Built-in
Mode: Full Speed （12 Mbit/sec）, High Speed （480 Mbit/sec）, Bulk transfer
Connector Type: Series B (4 pins)
Ethernet Type: Built-in
Standard: IEEE 802.3 10base-T
IEEE 802.3u 100base-TX / IEEE 802.3ab 1000base-T / Auto-Negotiation / IEEE 802.3x Full Duplex
Protocol: IPX/SPX （Netware 4.2（J）, 5.1（J）, 6.0 (J)）
SNMP （Canon-MIB）, HTTP, TCP/IP (IPv4/IPv6), AppleTalk
PRINT HEAD
Model PF-05
Type Bubble-jet on demand
Head Configuration 6 colours integrated type (6 chips per print head x 2 print heads)
Nozzle Pitch 1200 dpi x 2
Nozzle per chip 2,560 nozzles x 6 colours, 2 print heads
Droplet size 4pl
INK TANK
Model PFI-304 (330 ml): BK, MBK, C, M, Y, PC, PM, GY, PGY, R, G, B
PFI-704 (700 ml): BK, MBK, C, M, Y, PC, PM, GY, PGY, R, G, B
MEDIA HANDLING
Roll Paper One Roll, Front-loading, Front Output
Cut sheet Front-loading, Front Output (Manual feed using media locking lever)
Media Type Plain Paper
Premium Plain Paper
Coated Paper
Heavyweight Coated Paper
Premium Matte Paper
Glossy Photo Paper
Semi-Glossy Photo Paper
Premium Glossy Paper
Premium Semi-Glossy Paper
Backlit Film
Backlit Film HG
Backprint Film
Flame-Resistant Cloth
Fine Art Photo
Fine Art Heavyweight Photo
Fine Art Textured
Canvas Matte
Matte Coated Paper
Glossy Photographic Paper
Satin Photographic Paper
HW Glossy Photo Paper
HW Satin Photo Paper
Commercial Proofing Paper
Glossy Photographic Paper
Satin Photographic Paper
Uni Opaque Backlit Film
Roll-Up Film
Artistic Matte Canvas
Artistic Satin Canvas
Scrim Banner Vinyl
Adhesive Matte Vinyl
Standard Paper
Matt Coated Paper
Extra Matt Coated Paper
Opaque Paper
Hi Res Graphic Paper
Photo paper Pearl
Glossy Proofing Paper
Semiglossy Proofing Paper
Semiglossy Proofing Paper
Hi Res Barrier Paper
Scrim Banner
Water Res Art Canvas
Adhesive Matt Vinyl Stretch
Media size Roll paper (Width) ISO A3, A2, A1, A0
JIS B2, B1, B0
ARCH 24", 30", 36"
Others 10", 14", 16", 17", 42", 44"
Cut sheet ISO A4, A3, A3+, A2, A2+, A1, B4, B3, B2, B1, B0
DIN C4, C3, C2, C1, C0
JIS B4, B3, B2, B1, B0
ANSI 8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34", 28 x 40", 34 x 44"
ARCH 9 x 12", 12 x 18", 18 x 24", 24 x 36", 26 x 38", 27 x 39", 30 x 42", 36 x 48"
Photo 20 x 24", 18 x 22", 14 x 17", 12 x 16", 10 x 12", 10 x 15", 8 x 10", 16 x 20" (US Photo size)
Poster 20 x 30", 30 x 40", 42 x 60", 44 x 62", 300 x 900 mm
Others 13 x 22"
Media Thickness Roll paper 0.07 - 0.8 mm
Cut sheet 0.07 - 0.8 mm
Maximum outside diameter of Roll Paper 150.0 mm or less
Media Core Size Internal diameter of roll core: 2" / 3"
Media Width Roll paper 254 - 1117.6 mm
Cut sheet Manual feed from top 203.2 mm - 1117.6 mm
Minimal Printable Paper Length 203.2 mm
Maximum Printable Paper Length Roll paper 18 m (Varies according to the OS and application)
Cut sheet 1.6 m
Margins (Top, Bottoms, Sides) Recommended area Roll paper : Top: 20 mm, Bottom: 5 mm, Left/Right: 5 mm
Cut Sheet : Top: 20 mm, Bottom: 23 mm, Side: 5 mm
Printable area Roll paper : Top: 3 mm, Bottom: 3 mm, Left/Right: 3 mm
Roll paper Top: 5 mm, Bottom: 5 mm, Side: 5 mm
Roll paper （borderless print） Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut Sheet Top: 5 mm, Bottom: 23 mm, Side: 5 mm
Media Width for Borderless Printing 515 mm (JIS B2), 1,030 mm (JIS B0), 594 mm (ISO A1), 841 mm (ISO A0), 10", 14", 17", 24", 36", 42", 44"
OPTION
Media Take up Unit TU-06
Roll Holder Set RH2-44
CONSUMABLES
Ink Tank PFI-304 (330 ml): BK, MBK, C, M, Y, PC, PM, GY, PGY, R, G, B
PFI-704 (700 ml): BK, MBK, C, M, Y, PC, PM, GY, PGY, R, G, B
Print Head PF-05
Cutter Blade CT-06
Maintenance Cartridge MC-08
500.00€
